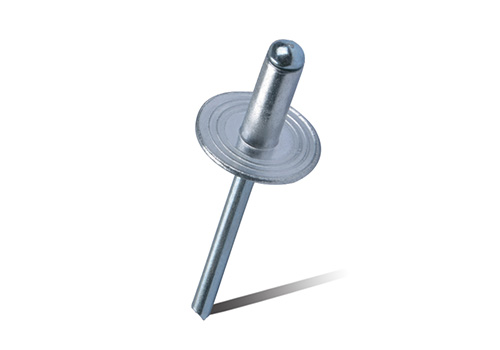

Aluminum/Steel Large Head Blind Rivets
Aluminum/Steel Large Head Blind Rivets
PARAMETER

Aluminum/Steel Large Head Blind Rivets

Body:

5050Alu.5052Alu.5154Alu.5056Alu

Body

Polished

Mandrel:

Steel

Mandrel

Zinc Plated


D



L



dk

k

dm







RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)



[+1/-0]

MIN-MAX



MAX.

MAX.

Ф

MIN.

MIN.

3.2    +0.08      -0.15

ASLF3206

6.0

1.0-3.5

9.5
+0.3
-0.7

2.0

2.00

3.3-3.4

5050Alu.
400N

5052Alu.
500N

5154Alu.
750N

5056Alu.
850N

5050Alu.
500N

5052Alu.
700N

5154Alu.
1000N

5056Alu.
1100N

ASLF3208

8.0

3.5-5.0

ASLF3210

10.0

5.0-7.0

ASLF3212

12.0

7.0-9.0

ASLF3214

14.0

9.0-11.0

ASLF3216

16.0

9.0-12.5

ASLF3218

18.0

12.0-14.5

ASLF3220

20.0

13.0-16.5

ASLF3225

25.0

15.0-21.0

4.0   +0.08      -0.15

ASLF4006

6.0

1.0-3.0

12
+0.5
-1.0

2.2

2.50

4.1-4.2

5050Alu.
800N

5052Alu.
850N

5154Alu.
1100N

5056Alu.
1400N

5050Alu.
1000N

5052Alu.
1200N

5154Alu.
1700N

5056Alu.
2000N

ASLF4008

8.0

3.0-5.0

ASLF4010

10.0

4.0-6.5

ASLF4012

12.0

6.0-8.5

ASLF4014

14.0

7.0-10.5

ASLF4016

16.0

8.0-12.5

ASLF4018

18.0

10.0-14.5

ASLF4020

20.0

12.0-16.0

ASLF4825

25.0

16.0-21.0

ASLF4830

30.0

21.0-26.0

ASLF4835

35.0

26.0-30.5

ASLF4840

40.0

30.5-35.0

4.8    +0.08      -0.15

ASLF4806

6.0

1.0-2.5

16
+0.5
-1.0

2.5

3.00

4.9-5.0

5050Alu.
1300N

5052Alu.
1500N

5154Alu.
1700N

5056Alu.
2000N

5050Alu.
1500N

5052Alu.
1800N

5154Alu.
2500N

5056Alu.
3000N

ASLF4808

8.0

2.5-4.0

ASLF4810

10.0

4.0-6.0

ASLF4812

12.0

6.0-8.0

ASLF4814

14.0

8.0-10.0

ASLF4816

16.0

8.0-12.0

ASLF4818

18.0

10.0-14.0

ASLF4820

20.0

12.0-16.0

ASLF4825

25.0

16.0-21.0

ASLF4830

30.0

21.0-25.0

ASLF4835

35.0

25.0-30.0

ASLF4840

40.0

30.0-35.0

ASLF4845

45.0

35.0-40.0

ASLF4850

50.0

40.0-45.0
