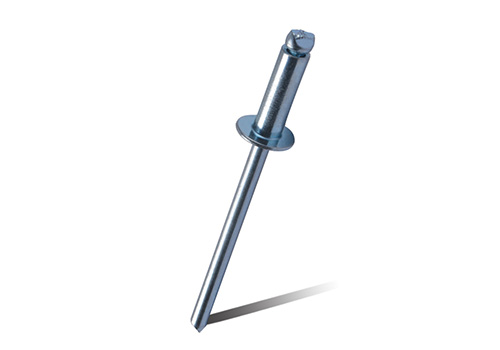

Aluminum/Stainless Steel Open Type Blind Rivets
Aluminum/Stainless Steel Open Type Blind Rivets
PARAMETER

Aluminum/Stainless Steel Open Type Blind Rivets

Body:

5056Alu

Body

Polished

Mandrel:

Stainless Steel

Mandrel

Polished


D



L



dk

k

dm







RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)



[+1/-0]

MIN-MAX



MAX.

MAX.

Ф

MIN.

MIN.

3.2    +0.08      -0.15

AB3206

6.0

1.0-3.5

5.8-6.7

1.3

2.00

3.3-3.4

750

1000

AB3208

8.0

3.5-5.0

AB3210

10.0

5.0-7.0

AB3212

12.0

7.0-9.0

AB3214

14.0

9.0-11.0

AB3216

16.0

9.0-12.5

AB3218

18.0

12.0-14.5

AB3220

20.0

13.0-16.5

AB3225

25.0

15.0-21.0

4.0   +0.08      -0.15

AB4006

6.0

1.0-3.0

6.9-8.4

1.7

2.50

4.1-4.2

1100.0

1700.0

AB4008

8.0

3.0-5.0

AB4010

10.0

4.0-6.5

AB4012

12.0

6.0-8.5

AB4014

14.0

7.0-10.5

AB4016

16.0

8.0-12.5

AB4018

18.0

10.0-14.5

AB4020

20.0

12.0-16.0

AB4825

25.0

16.0-21.0

AB4030

30.0

21.0-26.0

AB4035

35.0

26.0-30.5

AB4040

40.0

30.5-35.0

4.8    +0.08      -0.15

AB4806

6.0

1.0-2.5

8.3-10.1

2.0

3

4.9-5.0

1700

2500

AB4808

8.0

2.5-4.0

AB4810

10.0

4.0-6.0

AB4812

12.0

6.0-8.0

AB4814

14.0

8.0-10.0

AB4816

16.0

8.0-12.0

AB4818

18.0

10.0-14.0

AB4820

20.0

12.0-16.0

AB4825

25.0

16.0-21.0

AB4830

30.0

21.0-25.0

AB4835

35.0

25.0-30.0

AB4840

40.0

30.0-35.0

AB4845

45.0

35.0-40.0

AB4850

50.0

40.0-45.0
