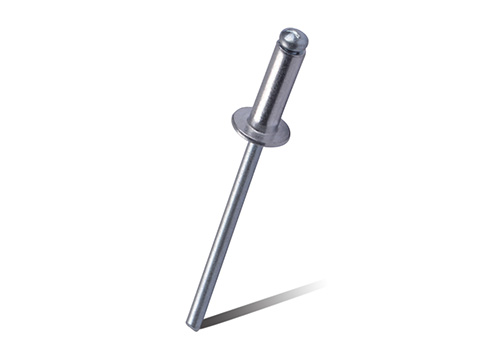

Aluminum/Steel Dome Head Blind Rivets
Aluminum/Steel Dome Head Blind Rivets
PARAMETER

Aluminum/Steel Dome Head Blind Rivets

Body:

5050Alu.5052Alu.5154Alu.5056Alu

Body

Polished

Mandrel:

Steel

Mandrel

Zinc Plated


D



L



dk

k

dm







RIVET SIZE

PART NUMBER

RIVET LENGTH

GRIP RANGE

HEAD  DIA

HEAD  HEIGHT

MANDREL  DIA

HOLE SIZE (DRILL)

Shear   (N)

Tensile  (N)



[+1/-0]

MIN-MAX



MAX.

MAX.

Ф

MIN.

MIN.

2.4    +0.08      -0.15

AS2404

4.0

0.5-2.0

4.2-5.0

1.0

1.6

2.5-2.6

5050Alu.  180N  5052Alu. 250N 5154Alu.    350N       5056Alu.  450N

5050Alu.  280N  5052Alu. 350N 5154Alu.    500N       5056Alu.  600N

AS2406

6.0

2.0-4.0

AS2408

8.0

4.0-6.0

AS2410

10.0

6.0-8.0

AS2412

12.0

7.0-9.5

AS2414

14.0

8.0-11.5

AS2416

16.0

10.0-13.0

3.0    +0.08      -0.15

AS3006

6.0

1.0-3.5

5.4-6.3

1.3

2.00

3.1-3.2

5050Alu  300N   5052Alu  400N   5154Alu  550N  5056Alu   750N

5050Alu  400N   5052Alu  550N   5154Alu  700N    5056Alu   900N

AS3008

8.0

3.5-5.0

AS3010

10.0

5.0-7.0

AS3012

12.0

7.0-9.0

AS3014

14.0

9.0-11.0

AS3016

16.0

9.0-12.5

AS3018

18.0

12.0-14.5

AS3020

20.0

13.0-16.5

3.2    +0.08      -0.15

AS3206

6.0

1.0-3.5

5.8-6.7

1.3

2.00

3.3-3.4

5050Alu  400N   5052Alu  500N   5154Alu  750N  5056Alu   850N

5050Alu  500N   5052Alu  700N   5154Alu  1000N 5056Alu   1100N

AS3208

8.0

3.5-5.0

AS3210

10.0

5.0-7.0

AS3212

12.0

7.0-9.0

AS3214

14.0

9.0-11.0

AS3216

16.0

9.0-12.5

AS3218

18.0

12.0-14.5

AS3220

20.0

13.0-16.5

AS3225

25.0

15.0-21.0

4.0   +0.08      -0.15

AS4006

6.0

1.0-3.0

6.9-8.4

1.7

2.50

4.1-4.2

5050Alu  800N   5052Alu  850N   5154Alu 1100N 5056Alu   1400N

5050Alu  1000N   5052Alu  1200N   5154Alu 1700N 5056Alu   2000N

AS4008

8.0

3.0-5.0

AS4010

10.0

4.0-6.5

AS4012

12.0

6.0-8.5

AS4014

14.0

7.0-10.5

AS4016

16.0

8.0-12.5

AS4018

18.0

10.0-14.5

AS4020

20.0

12.0-16.0

AS4025

25.0

16.0-21.0

AS4030

30.0

21.0-26.0

AS4035

35.0

26.0-30.5

AS4040

40.0

30.5-35.0

4.8  +0.08      -0.15

AS4806

6.0

1.0-2.5

8.3-10.1

2.0

3.0

4.9-5.0

5050Alu  1300N   5052Alu  1500N   5154Alu 1700N 5056Alu   2000N

5050Alu  1500N   5052Alu  1800N   5154Alu  2500N 5056Alu   3000N

AS4808

8.0

2.5-4.0

AS4810

10.0

4.0-6.0

AS4812

12.0

6.0-8.0

AS4814

14.0

8.0-10.0

AS4816

16.0

8.0-12.0

AS4818

18.0

10.0-14.0

AS4820

20.0

12.0-16.0

AS4825

25.0

16.0-21.0

AS4830

30.0

21.0-25.0

AS4835

35.0

25.0-30.0

AS4840

40.0

30.0-35.0

AS4845

45.0

35.0-40.0

AS4850

50.0

40.0-45.0

6.4  +0.08      -0.15

AS6408

8.0

1.5-3.0

11.6-13.4

2.7

3.90

6.5-6.6

5050Alu  2200N   5052Alu  2700N   5154Alu  3400N 5056Alu   3800N

5050Alu  3000N   5052Alu  3400N   5154Alu  4850N 5056Alu   5200N

AS6410

10.0

2.0-4.0

AS6412

12.0

3.0-6.0

AS6414

14.0

6.0-8.0

AS6416

16.0

6.0-10.0

AS6418

18.0

8.0-12.0

AS6420

20.0

10.0-14.0

AS6425

25.0

14.0-18.0

AS6430

30.0

18.0-23.0

AS6435

35.0

23.0-28.0

AS6440

40.0

28.0-33.0
