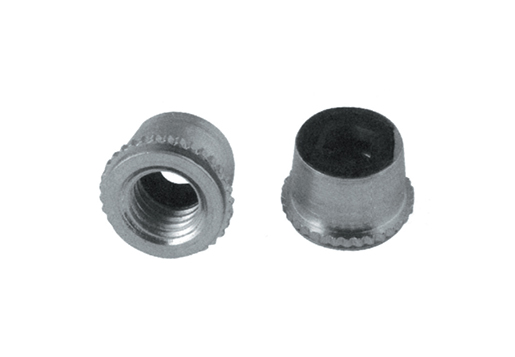

Self-Locking  Fasteners
Self-Locking  Fasteners
PARAMETER

All dimensions are in inches (Size Unit: inch)

UNIFIED

Thread Size X Pitcn

Type

Thread Code

Shank Code

A
(Shank)
Max.

Sheet Thickness

Hole Size In Sheet +.003

C Max.

D Max.

E Max.

T Max.

Min.Dist Hole C/L To Edge

Max.Hole in Attached Parts

Steel

Stainless Steel

.112-40(#4-40)

PL

PLC

440

15

.060

.060-.070

.234

.233

.216

.28

.130

.17

.132

.138-32(#6-32)

PL

PLC

632

15

.060

.060-.070

.265

.264

.246

.31

.130

.19

.158

.164-32(#8-32)

PL

PLC

832

15

.060

.060-.070

.297

.296

.278

.34

.155

.22

.184

.190-32(#10-32)

PL

PLC

032

15

.060

.060-.070

.312

.311

.292

.35

.165

.25

.210


All dimensions are in millimeters (Size Unit: mm)

METRIC

Thread Size X Pitcn

Type

Thread Code

Shank Code

A
(Shank)
Max.

Sheet Thickness

Hole Size In Sheet +0.08

C Max.

D Max.

E Max.

T Max.

Min.Dist Hole C/L To Edge

Max.Hole in Attached Parts

Steel

Stainless Steel

M3X0.5

PL

PLC

M3

15

1.53

1.53-1.78

6

5.97

5.5

7.1

3.6

4.3

3.5

M4X0.7

PL

PLC

M4

15

1.53

1.53-1.78

7.5

7.47

7.0

8.6

4.2

5.6

4.5

M5X0.8

PL

PLC

M5

15

1.53

1.53-1.78

8

7.97

7.5

8.9

4.5

6.4

5.5
