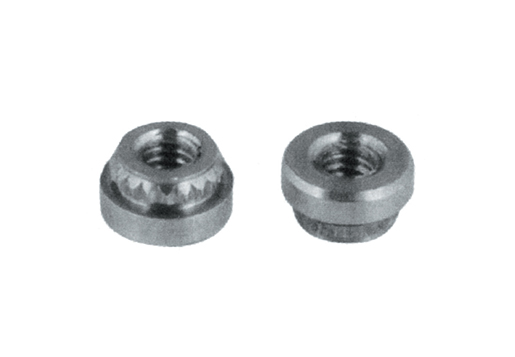

Self-Clinching Nuts
Self-Clinching Nuts
PARAMETER
All dimensions are in inches (Size Unit: inch)

UNIFIED

Thread Size  X Pitcn

Type

Thread Code

A
Max.

Min.Sheet Thickness

Hole Size  In Sheet +.003              -.000

C         ±0.03

E ±0.05

T ±0.05

Min.Dist Hole C/L           To Edge

CarbonSteel

StainlessSteel

.086-56(#2-56)

KF2

KFS2

256

.06

.06

.147

.165

.219

.065

.16

.112-40(#4-40)

KF2

KFS2

440

.06

.06

.166

.184

.219

.065

.17

.138-32(#6-32)

KF2

KFS2

632

.06

.06

.213

.231

.281

.065

.22

.164-32(#8-32)

KF2

KFS2

832

.06

.06

.250

.268

.344

.096

.25

.190-32(#10-32)

KF2

KFS2

032

.06

.06

.272

.290

.375

.127

.28


All dimensions are in millimeters (Size Unit: mm)

METRIC

Thread Size  X Pitcn

Type

Thread Code

A
Max.

Min.Sheet Thickness

Hole Size  In Sheet +.008

C         ±0.08

E ±0.13

T ±0.13

Min.Dist Hole C/L           To Edge

CarbonSteel

StainlessSteel

M2×0.4

KF2

KFS2

M2

1.53

1.53

3.73

4.19

5.56

1.5

4.2

M2.5×0.45

KF2

KFS2

M2.5

1.53

1.53

4.22

4.68

5.56

1.5

4.4

M3×0.5

KF2

KFS2

M3

1.53

1.53

4.22

4.68

5.56

1.5

4.4

M4×0.7

KF2

KFS2

M4

1.53

1.53

6.4

6.86

8.74

2

6.4

M5×0.8

KF2

KFS2

M5

1.53

1.53

6.9

7.37

9.53

3

7.1
